Evidenziare:
China big bearing stranding machine
, 500mm tubular stranding machine
, industrial tubular stranding machine
Utilizzo: |
Incagliamento |
Colore: |
Secondo il requisito del cliente |
Nome: |
Macchina di incaglio tubolare |
Applicazione: |
acciaio, alluminio, filo di acciaio, ACSR e AAAC |
Funzione: |
Incaglio dei cavi |
Altezza centrale della macchina: |
700 mm |
Bobina centrale di profitto: |
PN400-PN630 |
Dimensione della bobina della presa: |
PND800-PND1600 |
PLC: |
Siemens |
Diametro di cavo nudo massimo: |
5mm |
Garanzia: |
12 mesi |

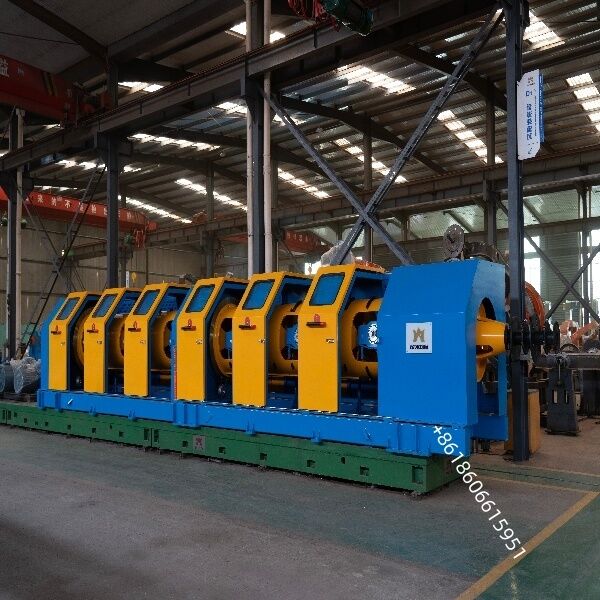

China Manufacture Big Bearing Tubular Stranding Machine 500mm Model Tubular Stranding Machine
Application:
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.
Component:
Central pay-off. cage host,taping device (optional),capstan,take-up and traverse device,and electric control system.
The 630 1+6 Tubular Electric Cable Stranding Machine is a key piece of equipment for manufacturing 7-core (1+6) stranded conductors like ACSR, AAAC, copper, and aluminum. Below is a technical overview and the typical support an engineer can expect.
Machine Overview & Key Parameters
Type: 630 1+6 Tubular Stranding Machine
Application: Stranding 7-core (1+6) conductors such as ACSR, AAAC, copper, and aluminum.
Structure: The 6-bobbin stranding cage rotates, while the central wire remains stationary, suitable for medium and large-section stranded conductors.
Engineering Support Areas
Pre-Sales & Basic Engineering
Application Review: Confirming suitability for the conductor type and size.
Layout & Utility Design: Providing GA drawings and calculating power, air, and foundation needs.
Process Consultation: Advising on lay length, speed, and tension ranges .
Commissioning & Training
On-site Installation: Mechanical and electrical setup, alignment, and safety checks.
Trial Runs: Assisting with startup, optimization, and first-article approval.
Operator Training: Covering operation, basic maintenance, and troubleshooting .
Remote & Field Support
Remote Assistance: Diagnosing issues via phone, video, or remote desktop.
Spare Parts: Supplying critical components like bearings, belts, and sensors.
On-site Service: Sending engineers for complex faults or modernization projects .
Maintenance & Optimization
Preventive Maintenance: Creating schedules and checklists for bearings, lubrication, and tension systems.
Upgrades: Advising on control system updates, data integration, and efficiency improvements .
Documentation & Standards
Machine Manuals: For operation, electrical schematics, and parts lists.
Process Documents: Recommended settings and quality checklists for specific conductor types.
Standards: Compliance with IEC, ISO, and regional cable standards (e.g., for ACSR/AAAC)
|
MODEL
|
DIAMETER BEFORE STRANDING [mm]
|
ROTARY SPEED [RPM]
|
CAPSTAN DIAMETER [mm]
|
|
GJ-6/160
|
0.12-0.40
|
2200
|
2*250
|
|
GJ-12/160
|
0.12-0.4
|
2100
|
2*250
|
|
GJ-18/160
|
0.12-0.40
|
1900
|
2*250
|
|
GJ-12/200
|
0.3-0.90
|
1500
|
2*320
|
|
GJ-18/200
|
0.3-0.90
|
1400
|
2*320
|
|
GJ-24/200
|
0.3-0.90
|
1300
|
2*400
|
|
GJ-30/200
|
0.3-0.90
|
1200
|
2*600
|
|
GJ-36/200
|
0.3-0.90
|
1100
|
2*600
|
|
GJ-12/250
|
0.4-1.0
|
1400
|
2*400
|
|
GJ-18/250
|
0.4-1.0
|
1200
|
2*600
|
|
GJ-24/250
|
0.4-1.0
|
1200
|
2*600
|
|
GJ-30/250
|
0.4-1.0
|
1100
|
2*600
|
|
GJ-36/250
|
0.4-1.0
|
1100
|
2*600
|
|
GJ-12/300
|
0.5-1.3
|
1200
|
2*600
|
|
GJ-18/300
|
0.5-1.3
|
1200
|
2*600
|
|
GJ-24/300
|
0.5-1.3
|
1000
|
2*800
|
|
GJ-30/300
|
0.5-1.3
|
1000
|
2*800
|
|
GJ-36/300
|
0.5-1.3
|
900
|
2*800
|
|
GJ-12/400
|
0.8-2.5
|
700
|
2*1000
|
|
GJ-18/400
|
0.8-2.5
|
600
|
2*1000
|
|
GJ-24/400
|
0.5-2.5
|
600
|
2*1000
|
|
GJ-12/500
|
1.0-3.5
|
650
|
2*1200
|
|
GJ-18/500
|
1.0-3.5
|
500
|
2*1200
|
|
GJ-12/630
|
1.5-5.0
|
450
|
2*1400
|
|
GJ-18/630
|
1.5-5.0
|
400
|
2*1600
|
|
GJ-12/800
|
2.0-6.0
|
350
|
2*1600
|
|
GJ-24/800
|
2.0-6.0
|
300
|
2*1800
|
|
GJ-6/1000
|
3.0-18.0
|
300
|
2*2000
|
|
GJ-8/1000
|
3.0-18.0
|
300
|
2*2000
|
